Description

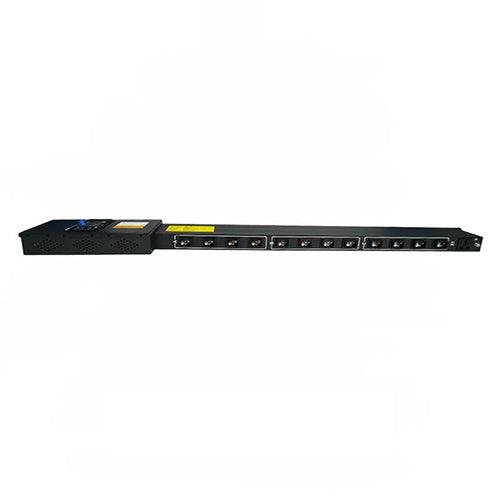

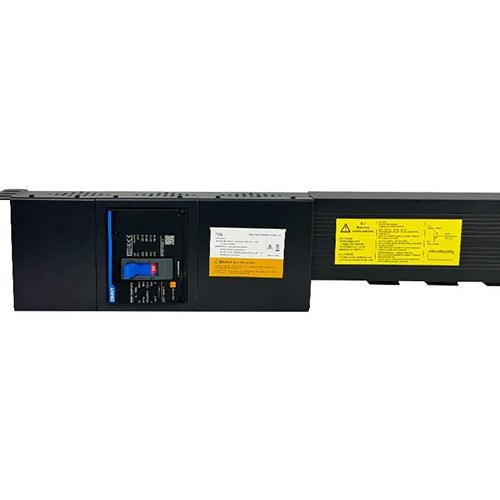

The Antminer T21 PDU series offers flexible configurations with 12, 9, or 6 output ports, supporting both three-phase and single-phase voltage and current outputs per socket to meet diverse customer requirements. Each PDU is fitted with a 125A, 100A, or 63A air switch circuit breaker, with a voltage withstand capacity below 500V, providing dependable overload and short-circuit protection.
This link is for the PDU with 12 output ports and a 125A. We recommend contacting our online customer service to confirm whether this PDU is compatible with your machine before placing your order.
Specification
| Product information | Model | PDU125-12AC1 |
| Input parameters | Input voltage | 346-480V AC,3P+N+PE |
| Frequency | 50/60Hz | |
| Input current | 125A/4P | |
| Output parameters | Output power | 85KW |
| Output voltage | 346-480V,4P | |
| Output voltage | 200-227VAC Single phase | |
| Output bits | 12 Port 6pin+1 AC30(3-in-1 multifunctional) | |
| IP | IP20 | |
| Working Environment | Working temperature | -20-40℃ |
| Working humidity | 5%-90%RH(no condensation) | |
| Elevation | ≤2000M | |
| Storage Environment | Storage temperature | -40-70℃ |
| Storage temperature | 5%-90%RH(no condensation) | |
| Dimensions of appearance | Length*width*height | 1100mm*125mm*70mm |
| Weight | Kilogram | 5.6KG |
| Enter the line | Copper | 252 |
| Aluminium | 502 |
